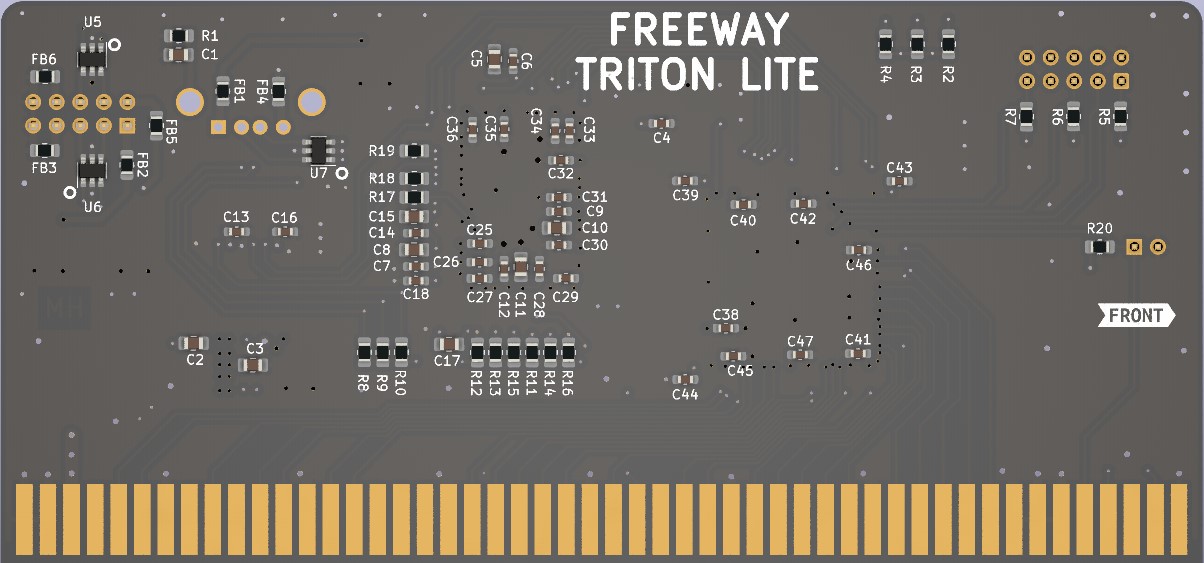

Freeway Triton Lite

Under construction...

USB interface

  • Zorro II- und Zorro III-Schnittstellen mit Autoselect oder Jumper (Z2-Modus erzwingen)
  • Drei USB-Anschlüsse
  • Kompatibel mit USB 1.1 und 2.0 Spezifikationen
  • Unterstützt USB 2.0 Highspeed-Modus (480 Mpbs)
  • Unterstützt PIO-Betrieb im Zorro II- und III-Modus mit bis zu 3,25 MB/s oder 6,5 MB/s
  • Überlast- und Kurzschlussschutz für alle Ports
  • benötigt mindestens 68030 @ 25 MHz
  • Zorro II and Zorro III interfaces with autoselect or jumper (force Z2 mode)
  • Three USB connectors
  • Compatible with USB 1.1 and 2.0 specifications
  • Supports USB 2.0 highspeed mode (480 Mpbs)
  • Supports PIO operation in Zorro II and III modes up to 3.25MB/s or 6.5MB/s
  • Overload and short circuit protection for all ports
  • requires at least 68030 @ 25 MHz

Jumper

  • Zorro 2: Die Triton erkennt automatisch, ob sie in einem Zorro 2 oder Zorro 3 Rechner steckt und aktiviert den passenden Modus. Möchte man in einem Zorro 3 Rechner aber Zorro 2 nutzen, kann man den Jumper setzen und damit Zorro 2 erzwingen.

LED

  • PWR: Karte läuft, Autoconfig erfolgreich abgeschlossen.
  • Z2: Karte ist im Z2-Modus
  • USB: Activity-LED

Help for the assembly - Interactive HTML BOM

Interactive HTML BOM for Version 1.1
